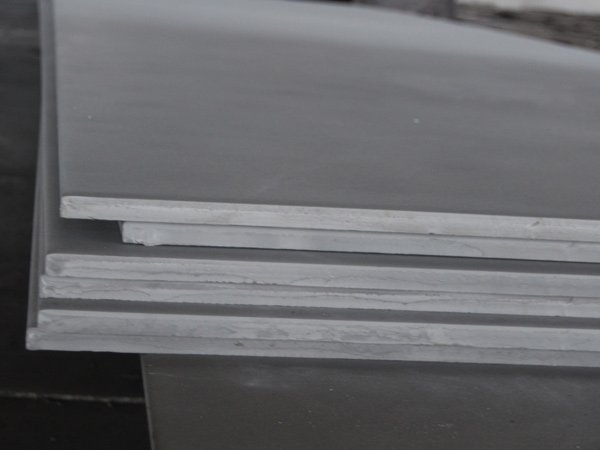

304/304L/304H Stainless Steel Plates

NG Industries are manufacturers, exporters & suppliers of SS 304/304L/304H Plates. In the midst of our extensive variety of products, we are additionally occupied with offering a predominant quality Stainless Steel 304/304L/304H Plates that is generally utilized as a part of different designing and development commercial ventures. Our offered Stainless Steel 304/304L/304H Plates is produced at merchants' end utilizing the most recent innovation and prevalent quality stainless steel. Aside from this, if sheet is entirely tried on different quality measures to guarantee its faultlessness. Our significant customers can benefit this sheet from us at business sector driving costs.

With the steady backing of our handy group of experts, we are satisfying the fluctuated necessities of customers by offering best quality Stainless Steel 304/304L/304H Plates and Sheets. This Stainless Steel 304/304L/304H Plates is made utilizing finest quality Stainless Steel 304/304L/304H Plates and propelled innovation. Tuned in to various needs of our overflowing customers, we redo the whole range in various sizes and shapes. Our offered Stainless Steel 304/304L/304H Plates has increased extraordinary worth amongst our customers for its unmistakable elements.

Alloy 304 a T-300 series stainless steel austenitic, which has a minimum of 18% chromium and 8% nickel. Type 304 has a maximum carbon of 0.07% . It is the standard “18/8 stainless” that is commonly found in pans and cooking tools. Alloy 304 is the most versatile and widely used alloy in the stainless steel family. Ideal for a wide variety of home and commercial applications, Alloy 304 exhibits excellent corrosion resistance and has a high ease of fabrication, outstanding formability. The austenitic stainless steels are also considered to be the most weldable of the high-alloy steels and can be welded by all fusion and resistance welding processes.

Specifications :

Standard : ASTM A240 / ASME SA240
Thickness of Coils : Ranging from 0.3mm to 10mm
Thickness of Sheets (Cold Rolled) : Ranging from 0.3 mm to 6 mm
Thickness of Sheets / Plates (Hot Rolled) : Ranging from 3.0 mm to 20 mm
Width : 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length : 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm
Hardness : As per ASME A & NACE MR 175
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

304/304L/304H Stainless Steel Plates Chemical Properties

C Mn Si P S Cr Ni N
304 0.07max 2.0max 0.75max 0.45max 0.03max min: 18.0 max: 20.0 min: 8.0 max: 10.5

304/304L/304H Stainless Steel Plates Mechanical Properties

Grade Tensile Strength ksi (min) Yield Strength 0.2% ksi (min) Elongation % Hardness (Brinell) MAX Hardness (Rockwell B) MAX
304 75 30 40 201 92

304/304L/304H Stainless Steel Plates Physical Properties

Density
lbm/in3
Thermal Conductivity
(BTU/h ft. °F)
Electrical
Resistivity
(in x 10-6)
Modulus of
Elasticity
(psi x 106
Coefficient of
Thermal Expansion
(in/in)/
°F x 10-6
Specific Heat
(BTU/lb/
°F)
Melting
Range
(°F)
at 68°F: 0.285 9.4 at 212°F 28.3 at 68°F 28 9.4 at 32 – 212°F 0.1200 at 68°F to 212°F 2500 to 2590
12.4 at 932 °F 39.4 at 752°F 10.2 at 32 – 1000°F
49.6 at 1652 °F 10.4 at 32 – 1500°F
