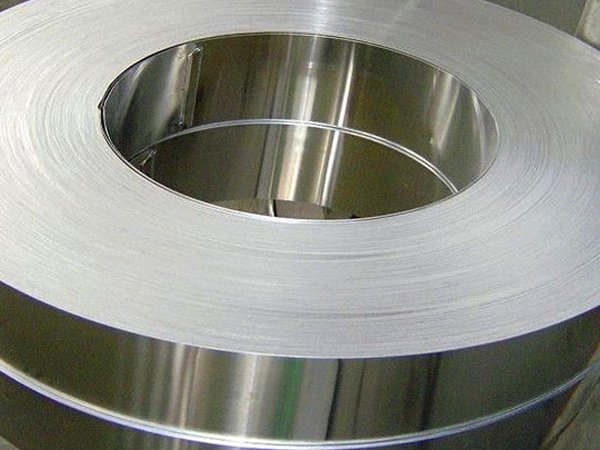

304/304L/304H Stainless Steel Strips

Stainless Steel 304 Strips / UNS S30400/ S30403/Euronorm: 1.4301 / 1.4303/AFNOR: Z5 CN 18.09 / Z2 CN 18.10 /DIN: X5 CRNI 18 10 / X2 CRNI19 11

We are manufacturing and offering 430 Stainless Steel Coil. This coil is manufactured using alloy 409. We acquire this gamut from most qualified and skilled vendors of the market. Our customers can avail this coil at very nominal rates.

Alloy 304 a T-300 series stainless steel austenitic, which has a minimum of 18% chromium and 8% nickel. Type 304 has a maximum carbon of 0.07% . It is the standard “18/8 stainless” that is commonly found in pans and cooking tools. Alloy 304 is the most versatile and widely used alloy in the stainless steel family. Ideal for a wide variety of home and commercial applications, Alloy 304 exhibits excellent corrosion resistance and has a high ease of fabrication, outstanding formability. The austenitic stainless steels are also considered to be the most weldable of the high-alloy steels and can be welded by all fusion and resistance welding processes.

Used in Food Industries, Chemical Industries , Electrielcal Industries, Genrater Industries, Shaft Industries, Cement Industries, Gas Industries, Power Project etc..

Specifications :

Standard : ASTM A240, ASME SA240
Size : 1000 x 2000, 1220 x 2440, (4' x 8'), 1250 x 2500, 1500 x 3000 To 6000, 2000 x 4000 To 6000
Thickness : 0.3 mm To 120 mm

Stainless Steel 304 Strip Chemical Properties :

C Mn Si P S Cr Ni N
304 0.07max 2.0max 0.75max 0.45max 0.03max min: 18.0 max: 20.0 min: 8.0 max: 10.5

Stainless Steel 304 Strip Mechanical Properties :

Grade Tensile Strength ksi (min) Yield Strength 0.2% ksi (min) Elongation % Hardness (Brinell) MAX Hardness (Rockwell B) MAX
304 75 30 40 201 92

Stainless Steel 304 Strip Physical Properties :

Density
lbm/in3
Thermal Conductivity
(BTU/h ft. °F)
Electrical
Resistivity
(in x 10-6)
Modulus of
Elasticity
(psi x 106
Coefficient of
Thermal Expansion
(in/in)/
°F x 10-6
Specific Heat
(BTU/lb/
°F)
Melting
Range
(°F)
at 68°F: 0.285 9.4 at 212°F 28.3 at 68°F 28 9.4 at 32 – 212°F 0.1200 at 68°F to 212°F 2500 to 2590
12.4 at 932 °F 39.4 at 752°F 10.2 at 32 – 1000°F
49.6 at 1652 °F 10.4 at 32 – 1500°F
