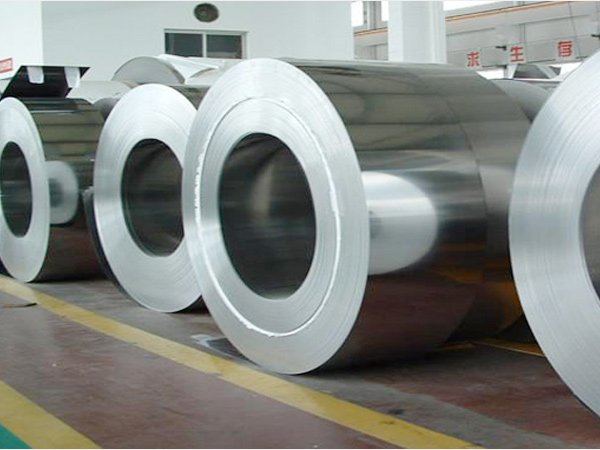

316/316Ti/316L Stainless Steel Strips

316 stainless steel contains an addition of molybdenum that gives it improved corrosion resistance. This is particularly apparent for pitting and crevice corrosion in chloride environments. 316L, the low carbon version of 316 stainless steel, is immune to grain boundary carbide precipitation (sensitisation). This makes it suited to use in heavy gauge (over about 6mm) welded components. For elevated temperature applications the high carbon variant, 316H stainless steel and the stabilised grade 316Ti stainless steel should be employed. The austenitic structure of 316 stainless steel gives excellent toughness, even at cryogenic temperatures.

Property data given in this document is typical for flat rolled products covered by ASTM A240/A240M. ASTM, EN or other standards may cover products sold. It is reasonable to expect specifications in these standards to be similar but not necessarily identical to those given in this datasheet. Stainless steel grade 316Ti contains a small amount of titanium. Titanium content is typically only around 0.5%. The titanium atoms stabilise the structure of the 316 at temperatures over 800°C. This prevents carbide precipitation at the grain boundaries and protects the metal from corrosion. The main advantage of 316Ti is that it can be held at higher temperatures for a longer period without sensitisation (precipitation) occurring. 316Ti retains physical and mechanical properties similar to standard grades of 316.

Steel strips 316 are widely used in industrial applications where reliability and assurance matters a lot. The offered steel strips 316 is manufactured using quality raw steel, progressive technology and under the supervision of deft professionals. In addition with, clients can get the steel strips 316 from us within the stipulated time frame.

Type 316Ti(UNS 31635) is a Titanium stabilized austenitic chromium-nickel stainless steel containing molybdenum. This addition increases corrosion resistance, improves resistance to pitting chloride ion solutions and provide increased strength at elevated temperatures. Properties are similar to those of type 316 except that 316Ti due to its Titanium addition can be used at elevated sensitisation temperatures. Corrosion resistance is improved, particularly against sulfuric, hydrochloric, acetic, formic and tartaric acids, acid sulfates and alkaline chlorides.

Used in Food Industries, Chemical Industries , Electrielcal Industries, Genrater Industries, Shaft Industries, Cement Industries, Gas Industries, Power Project etc..

Specifications :

Standard : ASTM A240, ASME SA240
Size : 1000 x 2000, 1220 x 2440, (4' x 8'), 1250 x 2500, 1500 x 3000 To 6000, 2000 x 4000 To 6000
Thickness : 0.3 mm To 120 mm

Stainless Steel 316TI Strip Chemical Properties :

Chemical Element % Present
Carbon (C) 0.0 - 0.08
Chromium (Cr) 16.00 - 18.00
Molybdenum (Mo) 2.00 - 3.00
Silicon (Si) 0.0 - 0.75
Phosphorous (P) 0.0 - 0.05
Sulphur (S) 0.0 - 0.03
Nickel (Ni) 10.00 - 14.00
Titanium (Ti) 0.0 - 0.70
Iron (Fe) Balance

Stainless Steel 316TI Strip Mechanical Properties :

Mechanical PropertyValue
Proof Stress 170 MPa
Tensile Strength 485 MPa
Elongation A50 mm 40 %

Stainless Steel 316TI Strip Physical Properties :

Physical PropertyValue
Density 8.0 g/cm³
Melting Point 1400 °C
Thermal Expansion 15.9 x10^-6 /K
Modulus of Elasticity 193 GPa
Thermal Conductivity 16.3 W/m.K
Electrical Resistivity 0.074 x10^-6 Ω .m
