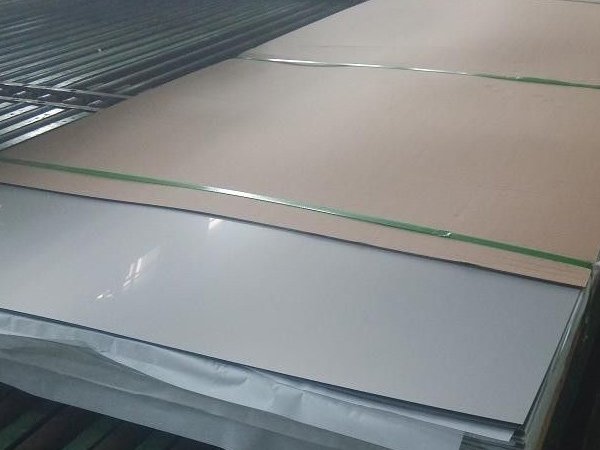

316L/316 TI Stainless Steel Plates

We are providing excellent varieties of Stainless Steel 316L/316Ti Plates, which are supplied in the grades of 316 TI. They are offered in various dimensional specifications, shapes and sizes. They are known for long lives and are used in different sorts of fabrication and engineering projects.

These plates are tested on different quality parameters and are carefully designed and manufactured under rigid quality control procedures. They are precisely developed and are known for dimensional accuracy, maximum performance and simple maintenance.

Grade 316 is the standard molybdenum-bearing assessment, second in essentialness to 304 amongst the austenitic stainless steels. The molybdenum gives 316 best broad disintegration safe properties over Grade 304, particularly higher impenetrability to setting and crevice utilization in chloride circumstances. Stainless Steel 316L/316Ti Sheets has awesome forming and welding properties. It is expeditiously brake or roll surrounded into a variety of parts for applications in the mechanical, basic, and transportation fields. Grade 316 similarly has noteworthy welding qualities. Post-weld treating is not required when welding thin portions.

Features :

  • High tensile strength
  • Long service life
  • Resistant against corrosion
  • Highly machinable
  • Very strong and tough
  • Can be hardened by heat treatment
  • Magnetic

Specifications :

Standard : ASTM A240 / ASME SA240
Thickness of Coils : Ranging from 0.3mm to 10mm
Thickness of Sheets (Cold Rolled) : Ranging from 0.3 mm to 6 mm
Thickness of Sheets / Plates (Hot Rolled) : Ranging from 3.0 mm to 20 mm
Width : 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length : 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm
Hardness : As per ASME A & NACE MR 175
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

316L/316 TI Stainless Steel Plates Chemical Element :

Chemical Element % Present
Carbon (C) 0.0 - 0.08
Chromium (Cr) 16.00 - 18.00
Molybdenum (Mo) 2.00 - 3.00
Silicon (Si) 0.0 - 0.75
Phosphorous (P) 0.0 - 0.05
Sulphur (S) 0.0 - 0.03
Nickel (Ni) 10.00 - 14.00
Titanium (Ti) 0.0 - 0.70
Iron (Fe) Balance

316L/316 TI Stainless Steel Plates Physical Property :

Physical PropertyValue
Density 8.0 g/cm³
Melting Point 1400 °C
Thermal Expansion 15.9 x10^-6 /K
Modulus of Elasticity 193 GPa
Thermal Conductivity 16.3 W/m.K
Electrical Resistivity 0.074 x10^-6 Ω .m

316L/316 TI Stainless Steel Plates Mechanical Property :

Mechanical PropertyValue
Proof Stress 170 MPa
Tensile Strength 485 MPa
Elongation A50 mm 40 %
