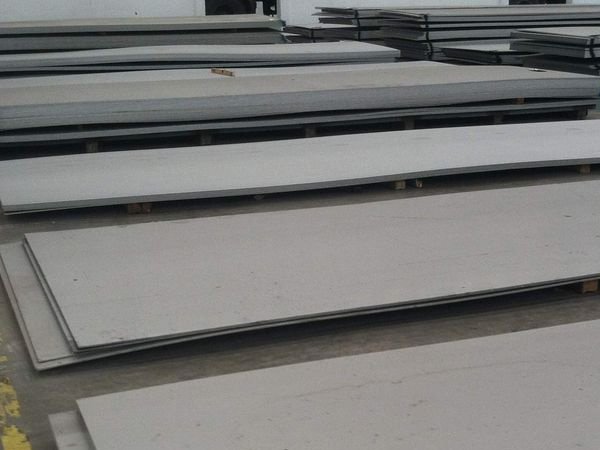

317/317L Stainless Steel Plates

NG Industries are manufacturers, exporters & suppliers of 317/317L Stainless Steel Plates. Stainless steels are known as high-composite steels. They comprise around 4-30% of chromium. They are grouped into martensitic, austenitic, and ferritic steels in view of their crystalline structure. Grade 317 Stainless Steel is an altered variant of 316 stainless steel. It has high quality and consumption resistance. The accompanying datasheet gives more insights about evaluation 317 stainless steel.

Type 317L is a molybdenum-containing austenitic stainless steel wanted to give gained ground disintegration resistance in admiration to Type 316L in extremely ruinous method circumstances, particularly those containing chlorides or different halides. The low carbon stipends Type 317L to be welded without refinement to intergranular utilization coming to fruition as a result of chromium carbide precipitation in as far as possible. Sort 317L is non-alluring in the tempered condition however may swing out to besomewhat appealing as a result of welding.

Features :

  • High tensile strength
  • Long service life
  • Resistant against corrosion
  • Highly machinable
  • Very strong and tough
  • Can be hardened by heat treatment
  • Magnetic

Specifications :

Standard : ASTM A240 / ASME SA240
Thickness of Coils : Ranging from 0.3mm to 10mm
Thickness of Sheets (Cold Rolled) : Ranging from 0.3 mm to 6 mm
Thickness of Sheets / Plates (Hot Rolled) : Ranging from 3.0 mm to 20 mm
Width : 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length : 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm
Hardness : As per ASME A & NACE MR 175
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

317/317L Stainless Steel Plates Chemical Properties

Ni

Cr

Mo

Mn

Si

11.0 - 15.0

18.0 - 20.0

3.0 - 4.0

2.0 Max

.75 Max

C

N

S

P

Fe

0.03 Max

0.1 Max

0.03 Max

0.045 Max

Balance

317/317L Stainless Steel Plates Mechanical Properties


Ultimate Tensile Strength, ksi Minimum

.2% Yield Strength, ksi Minimum

Elongation Percent

Hardness Max.

75

30

35

217 Brinell
