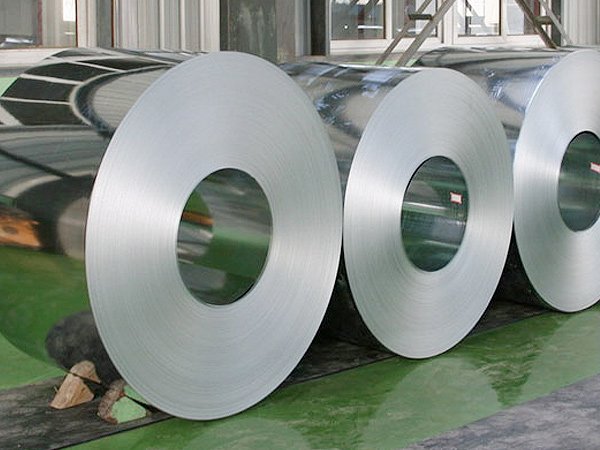

347 Stainless Steel Coil

SS 347 Sheets, Stainless Steel UNS S34700 Sheets & Plates, SS 347 Coils, Stainless Steel 347 Strips, SS 347 Sheets & Plates Supplier.

Type 347 is a stabilized austenitic stainless steel similar to type 304 with an addition of Columbium and Tantalum. The columbium serves to produce a stabilized type of stainless steel which is immune to chromium carbide precipitation. This type of grades are thus recommended for parts fabricated by welding which cannot be susequently annealed or for parts which must operate in service between 800 – 1600°F.

347 Stainless Steel Coil has a high resistance to prolonged heat and corrosion making it well suited for engine, power generation, welded fabrications and other high heat applications. 347 stainless steel offers good mechanical properties with higher creep and stress rupture characteristics than other grades, such as 304. 347 stainless steel is also advantageous in applications that require omission of the annealing process after welding.

347 Stainless Steel Coil is an austenitic rolled coil stainless steel that is stablizied by the presence of niobium and tantalum. Combined, the niobium (columbium) and tantalum content are ten times greater than the carbon content present. Similar to Type 321, Type 347 has excellent creep-resistant properties, as well as high-stress rupture properties. We supply 347 stainless steel sheet in a variety of lengths and widths and can custom cut to your exact specifications. 347 coil can also be slit to your desired width.

Used in Food Industries, Chemical Industries , Electrielcal Industries, Genrater Industries, Shaft Industries, Cement Industries, Gas Industries, Power Project etc..

Specifications :

Standard : ASTM A240 / ASME SA240
Thickness of Coils : Ranging from 0.3mm to 10mm
Thickness of Sheets (Cold Rolled) : Ranging from 0.3 mm to 6 mm
Thickness of Sheets / Plates (Hot Rolled) : Ranging from 3.0 mm to 20 mm
Width : 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Hardness : As per ASME A & NACE MR 175
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

Grade specifications of Stainless Steel 347 Coils :

STANDARD UNS WERKSTOFF NR. EN BS GOST JIS AFNOR
347 S34700 1.4550 - - - - -
