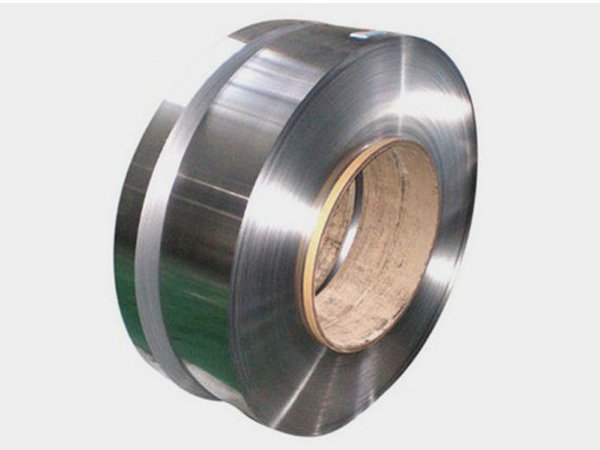

409 Stainless Steel Strips

We are recognized in the market for offering quality high gamut of 409 Stainless Steel Strips. The offered strips are made using alloy 409. Moreover, the entire gamut is tested against many quality parameters to keep it as per set quality standards. Too, this array is available in various specifications and standards. This array is highly demanded in the making of home appliance, constructions and electronics. Our clients can avail this gamut at very nominal rates.

Alloy 409 is the basic, general purpose martensitic stainless steel that is used for highly stressed parts and provides good corrosion resistance plus high strength and hardness. Alloy 409 contains a minimum of 11.5% chromium which is just sufficient enough to demonstrate corrosion resistance properties in mild atmospheres, steam, and many mild chemical environments. It is a general purpose grade that is often supplied in the hardened but still machineable condition for applications where high strength and moderate heat and corrosion resistance are required. Alloy 410 displays maximum corrosion resistance when it’s been hardened, tempered, and then polished.

Used in Food Industries, Chemical Industries , Electrielcal Industries, Genrater Industries, Shaft Industries, Cement Industries, Gas Industries, Power Project etc..

Specifications :

Standard : ASTM A240, ASME SA240
Size : 1000 x 2000, 1220 x 2440, (4' x 8'), 1250 x 2500, 1500 x 3000 To 6000, 2000 x 4000 To 6000
Thickness : 0.3 mm To 120 mm

Stainless Steel 409 Strip Chemical Properties :

C Mn Si P S Cr Ni
410 0.15 max 1.00 max 1.00 max 0.04 max 0.03 max min: 11.5
max: 13.5
0.50 max

Stainless Steel 409 Strip Mechanical Properties :

Grade Tensile Strength ksi (MPa) min Yield Strength 0.2% offset ksi (MPa) min Elongation (% in 50mm) min Hardness (Brinell) MAX Hardness (Rockwell B) MAX
410 65 (450) 30 (205) 20 217 96
