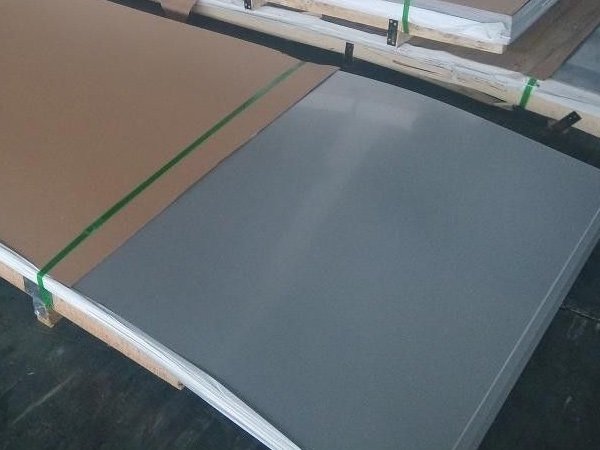

410/410S Stainless Steel Plates

NG Industries are are manufacturers, exporters & suppliers of 409 Stainless Steel Plates. 409 Stainless Steel which is an extensively helpful hardenable stainless steel. Its quality, extraordinary flexibility and impenetrability to disintegration in smooth show, steam and tender engineered circumstances make it suitable for uncommonly centered around parts. All of our 410 stainless steel plates and stainless steel twist is asked for to specific decimal thicknesses.

Alloy 410 is the basic, general purpose martensitic stainless steel that is used for highly stressed parts and provides good corrosion resistance plus high strength and hardness. Alloy 410 contains a minimum of 11.5% chromium which is just sufficient enough to demonstrate corrosion resistance properties in mild atmospheres, steam, and many mild chemical environments. It is a general purpose grade that is often supplied in the hardened but still machineable condition for applications where high strength and moderate heat and corrosion resistance are required. Alloy 410 displays maximum corrosion resistance when it’s been hardened, tempered, and then polished.

Features :

  • High tensile strength
  • Long service life
  • Resistant against corrosion
  • Highly machinable
  • Very strong and tough
  • Can be hardened by heat treatment
  • Magnetic

Specification

Steel GradesAISI347/ (1.4550) , AISI 347H ( 1.4961)
ProductionHot-Rolled (HR) / Cold-Rolled (CR)
StandardASTM A240 / ASME SA240
Thickness1.0mm – 100mm
Width1000mm-2000mm
ApplicationMedical equipment, Food industry, Construction material, Kitchen utensils, BBQ grill, Building construction, Electric equipment.

410/410S Stainless Steel Plate Chemical Properties:

C Mn Si P S Cr Ni
410 0.15 max 1.00 max 1.00 max 0.04 max 0.03 max min: 11.5
max: 13.5
0.50 max

410/410S Stainless Steel Plate Mechanical Properties:

Grade Tensile Strength ksi (MPa) min Yield Strength 0.2% offset ksi (MPa) min Elongation (% in 50mm) min Hardness (Brinell) MAX Hardness (Rockwell B) MAX
410 65 (450) 30 (205) 20 217 96
