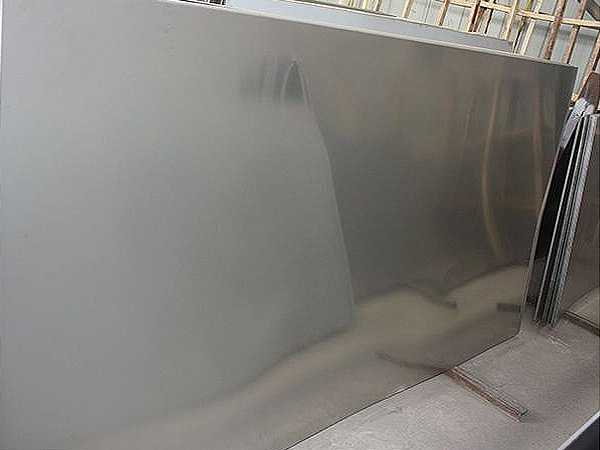

ASTM/ASME SA 240 Stainless Steel Sheet

ASME SA240 standard specification for chromium and chromium-nickel stainless steel plate, sheet, and strip for pressure vessels and for general applications sa240 grade 800 800H 904L 201 202 XM-19 XM-31 XM-17 XM-18 XM-19 301 301L 302 304 304L 304H 304N XM-21 304LN 305 309S 309H 309Cb 309HCb 310S 310H 310Cb 310HCb 310MoLN 316 316L 316H 316Ti 316Cb 316N 316LN 317 317l 317LM 317LMN 317LN 321 321H 334 347 347H 348 348H XM-15 2205 2304 255 2507 329 405 409 410 410S 429 430 439 434 436 444 XM-33 XM-27

Range : 1mm to 200mm Thk in 1000 mm to 3000 mm WIDTH x 2500 mm / 5000 mm / 10000 mm /coil.

Stainless Steel Sheets : ASTM / ASME SA 240 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316H, 316L, 316 TI, 317, 317L, 321, 321H, 347, 347 H , 409, 410, 410S, 430

Duplex Steel Sheets : ASTM / ASME SA 240 UNS NO. S 31803, S 32205, S 32550, S 32750, S 32760

Specification

Steel GradesAISI304(1.4301), AISI304L(1.4307), AISI304H (S30409)
ProductionHot-Rolled (HR) / Cold-Rolled (CR)
StandardASTM A240 / ASME SA240
Thickness0.3mm to 100mm
Length1000mm-6000mm
ApplicationMedical equipment, Food industry, Construction material, Kitchen utensils, BBQ grill, Building construction, Electric equipment,

Chemical Composition

Grade The Element Max (%)
C Mn P S Si Cr Ni
ASME SA240 316L 0.030 2.00 0.045 0.030 0.75 16.0-18.0 10.0-14.0
Mo N Cu   Cb
2.0-3.0 0.10
Grade ASME SA240 316L Mechanical Property

Yield Tensile Elongation Hardness, max
ASME SA240 316L Min Mpa Mpa Min  % Brinell Rockwell B
170 485 40% 217 95
