HASTELLOY®C-22® alloy (UNS N06022) is one of the well-known and well-proven nickel-chromium-molybdenum materials, the chief attributes of which are resistance to both oxidizing and non-oxidizing chemicals, and protection from pitting, crevice attack, and stress corrosion cracking. Its high chromium content provides much higher resistance to oxidizing media than the family standard, C-276 alloy, and imparts exceptional resistance to chloride-induced pitting, an insidious and unpredictable form of attack, to which the stainless steels are prone.

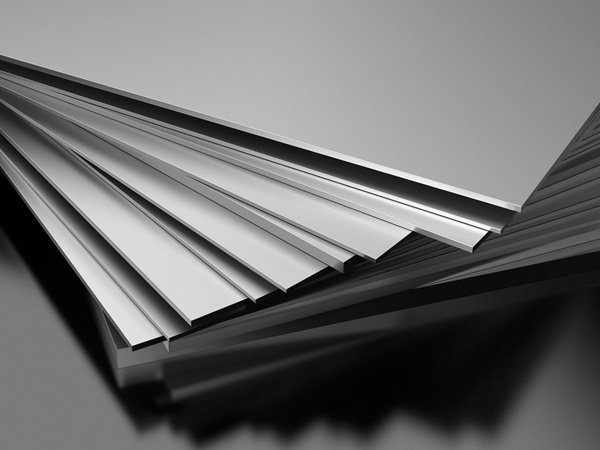

Like other nickel alloys, HASTELLOY®C-22® alloy is very ductile, exhibits excellent weldability, and is easily fabricated into industrial components. It is available in the form of plates, sheets, strips, billets, bars, wires, pipes, tubes, and covered electrodes. Typical chemical process industry (CPI) applications include reactors, heat exchangers, and columns.
Hastelloy C22, also known as alloy C22, is a versatile austenitic nickel-chromium-molybdenum-tungsten alloy with enhanced resistance to pitting, crevice corrosion and stress corrosion cracking. The high chromium content provides good resistance to oxidizing media while the molybdenum and tungsten content give good resistance to reducing media. This nickel steel alloy also has excellent resistance to oxidizing aqueous media including wet chlorine and mixtures containing nitric acid or oxidizing acids with chlorine ions. Other corrosives Hastelloy C-22 has resistance to are oxidizing acid chlorides, wet chlorine, formic and acetic acids, ferric and cupric chlorides, sea water, brine and many mixed or contaminated chemical solutions, both organic and inorganic. This nickel alloy also offers optimum resistance to environments where reducing and oxidizing conditions are encountered in process streams. This is beneficial in multi- purpose plants where such “upset” conditions occur frequently.
- Resistant to pitting, crevice corrosion and stress corrosion cracking
- Outstanding resistance to both reducing and oxidizing media
- Excellent resistance to knife-line and heat-affected zone attack
- Exceptional resistance to a wide variety of chemical process environments including strong oxidizers such as ferric acids, acetic anhydride, and seawater and brine solutions
- Resists the formation of grain-boundary precipitates in the weld heat-affected zone
- Excellent weldability
- Pharmaceutical industries use alloy C-22 fittings and tubing to avoid contamination caused by corrosion related failures.
- Cellophane manufacturing.
- Chlorination systems.
- Pesticide production .
- Chemical process industry in equipment like flue gas scrubbers, chlorination systems, sulfur dioxide scrubbers, pulp and paper bleach plants, pickling systems, and nuclear fuel reprocessing.
- Waste water processing.
|Common Name||Minimum Values|
|UTS (ksi)||YS (ksi)||EI (%)||Ra(%)|
