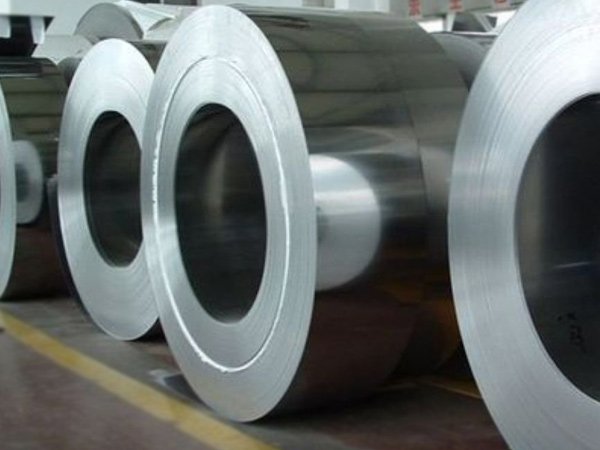

Incoloy 800 Coils

Incoloy 800® is a nickel-chromium alloy with high strength and superb resistance & Incoloy 800H and 800 HT are nickel-iron-chromium alloys. OZAIRTRADELINK is a leading supplier and exporter of Incoloy 800/800H/800HT Strips, Sheet & Plate. We provide Incoloy Alloy 800/800H/800HT Strips, Sheet & Plate globally as per made-to-order requirements given by our highly valued clients, to meet the quality demands of our customers.

Incoloy Alloy 800/800H/800HT Strips, Sheet & Plate are available in different types such as Incoloy Alloy 800/800H/800HT Strips, Sheet & Plates(ASME SB-409, AMS 5877), Incoloy Alloy 800/800H/800HT Strips Exporter in India, Incoloy Alloy 800/800H/800HT Sheets Exporter in India, Incoloy Alloy 800/800H/800HT Plates Exporter in India, Incoloy Alloy UNS N08800/N08810/N08811 Strips, Sheet & Plates, Incoloy Alloy DIN 1.4876/1.4958/1.4859 Strips, Sheet & Plates, 800/800H/800HT Incoloy Strips, Sheet & Plates, Incoloy Alloy UNS N08800/N08810/N08811 Plates, Incoloy Alloy UNS N08800/N08810/N08811 Sheet, Incoloy Alloy UNS N08800/N08810/N08811 Plates, Incoloy Alloy 800/800H/800HT Shim Sheets, Incoloy Alloy 800/800H/800HT DIN 1.4876/1.4958/1.4859 Chequered Plate.

Incoloy Alloy 800/800H/800HT Strips, Sheet & Plate was proposed for high temperature basic applications. The nickel content makes the alloys highly resistant to both chloride stress-corrosion cracking and to embitterment from precipitation of sigma stage. Meanwhile, for high temperature applications requiring optimum rupture and creep properties, Incoloy Alloy 800H Plates (UNS N08810 Plates) and Incoloy Alloy 800HT Strip(UNS N08811 Strip) are used. Incoloy Alloy 800/800H/800HT Strips, Sheet & Plate are also referred as WNR 1.4876 Sheets, WNR 1.4958 Plates and WNR 1.4859 Strip respectively.

Chemical Properties :

Incoloy 800 Ni Fe Cr Cu Ti Al C Mn S Si
30.0-35.0 39.5 min 19.0-23.0 .75 max .15-.60 .15-.60 .1 max 1.5 max .015 max 1.0 max
Incoloy 800H Ni Fe Cr Cu Ti Al C Mn S Si
30.0-35.0 39.5 min 19.0-23.0 .75 max .15-.60 .15-.60 .05-.10 max 1.5 max .015 max 1.0 max
Incoloy 800HT Ni Fe Cr Cu Ti Al C Mn S Si
30.0-35.0 39.5 min 19.0-23.0 .75 max .25-.60 .85-1.20 .06-.10 max 1.5 max .015 max 1.0 max

Mechanical Properties :

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Incoloy 800 7.94 g/cm3 1350-1400 ℃ 500 205 30 - 35 %
Incoloy 800H 7.94 g/cm3 1350-1400℃ 500 200 30 - 35 %
Incoloy 800HT 7.94 g/cm3 1350-1400℃ 500 200 30 - 35 %
