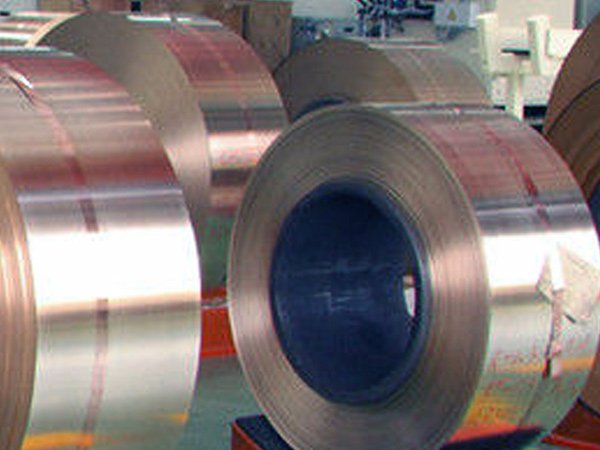

Inconel 600 Coils

NG Industries is one of the most prominent manufacturer and supplier of Inconel 600 Coils can be achieved via shielded metal-arc welding, TIG, and MIG. Inconel 600 Coils can be joined by the usual welding, brazing, and soldering process. Alloy 600 Sheets are almost exclusively supplied in the annealed condition. Bar stock may need to be stress relieved, or annealed before performing any heading operations. Alloy 600 Plates are often in a lot of applications such as for Heat treating retorts and muffles, Vacuum furnace fixtures, Titanium dioxide plants, Chlorination machinery to 1000 Degree F, etc. Our Alloy 600 Coils is mixture of pure and best quality metals as our experts check very carefully each and every step of mixture. These products come in standard sizes. Other customized sizes and shapes are welcome as well.

Inconel 600 Coil are most quality finishing fittings & used for long life, high pressure & zero defects. Inconel 600 Coil is alloys retain strength, toughness and resistance to corrosion in a high temperature environment. These alloys are used in various industries & precious applications Like refineries, chemical plants and power generation, Nuclear Power, Aerospace etc at NG Industries. The Inconel 600 Coil are manufactured to sustain very high pressure and comes with one year warranty. our fittings differentiation is based on the premier finish of Inconel 600 Coil with minimum burr at the edge .

Specifications Inconel 600 Coils :

Inconel 600 N06600 2.4816 МНЖМц 28-2,5-1,5 NA 13 ЭИ868 NiCr15Fe NCF 600 NC15FE11M

Mechanical Properties :

0.2% proof stress [MPa] min Tensile strength [MPa] min Elongation [%] min Hardness [HB] max
240 550 30 88

Physical Properties :

Density                                                        8.51 [g/cm3]
Specific heat                                               444 [J/kg . K]
Electrical resistivity                                      103 [μΩ . cm]
Thermal conductivity                                   15.0 [W/m . K]
Average coefficient of thermal expansion
25~  93°C 13.3 [10-6/°C]
25~316°C 14.2
25~538°C 15.1
25~760°C 16.0
25~982°C 16.7
Young’s modulus                                        21.4 × 104 [MPa]
Curie point                                                   -124 [°C]
Magnetism None
Melting range                                            1370~1410  [°C]
