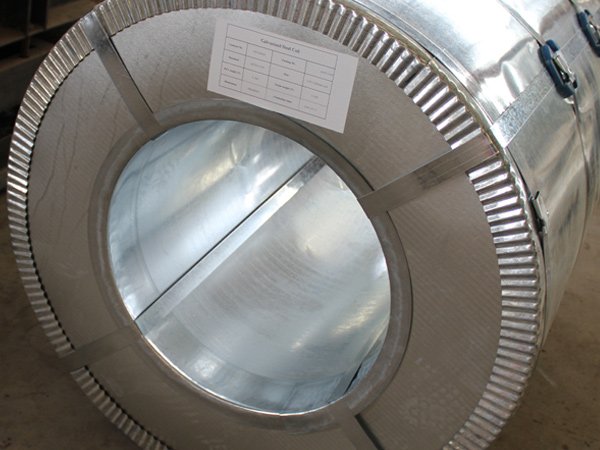

Inconel 625 Coils

Inconel® 625 Coil is a non-magnetic, austenitic nickel-based superalloy with excellent resitance to oxidation and corrosion over a broad range of conditions, including jet engine and chemical process applications. The outstanding strength and toughness of Alloy 625, at temperatures ranging from cryogenic to 2000˚F (1093˚C), are derived primarily from the solid solution strengthening of columbium and molybdenum in a nickel-chromium matrix. This alloy displays high tensile strength, excellent fabricability, and brazeability.

Petrochemical, Chemical, Pharmaceutical, Fertiliser, Aagro Chemical, Aerospace, Desalination, Food & Beverage, Suger, Distillery, Oil & Gas, Power Generation, Cement, Petroleum Refinery, Pulp & paper & Man Made Fiber.

Materials of Construction :

High Nickel Alloys

Hastelloy C276 & C22, Nickel 200 & 201, Monel 400 & 500, Inconel 600 & 625, Incoloy 800 & 825, Alloy-20 & Cupro Nickel

Duplex

ASTM A815 / UNS S31803 & S32205 (2205)

Super Duplex

ASTM A815 / UNS S32750 (2507) & S32760.

Titanum

ASTM B265 Gr. - 1, 2, 3, 5 (6AL - 4V), 7,9,11,12,23 (6AL - 4V ELI)

Stainless Steel

ASTM A240, TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 409, 410, 420, 430, 446, 904L, 202

Carbon Steel

ASTM A36 , S275JR , IS-2062 GR. A / B, Fe 410WA, Fe 410WB , ASTM / ASME A 516 / 517 GR. 60 / 70, IS 2062, IS 2002

Test certificates

MTC, IBR & Third Party Inspection


Chemical Composition :

Element Percent by Weight
Carbon 0.010 maximum
Manganese 0.50 maximum
Phosphorus 0.015 maximum
Sulfur 0.015 maximum
Silicon 0.50 maximum
Chromium 20.00 - 23.00
Nickel Balance
Molybdenum 8.00 - 10.00
Columbium 3.15 - 4.15
Titanium 0.40 maximum
Aluminum 0.40 maximum
Tantalum 0.05 maximum
Iron 5.00 maximum
