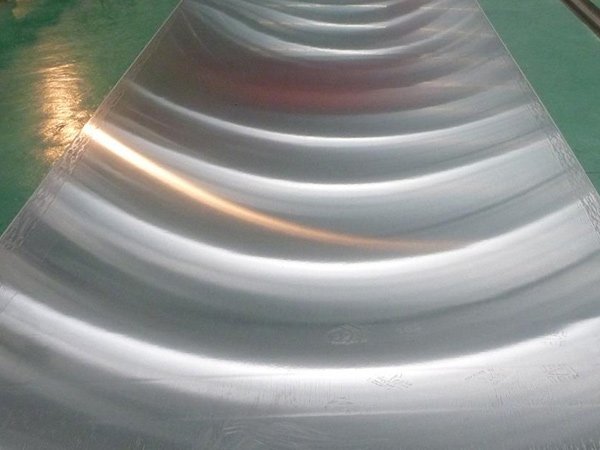

Inconel 800 Plates

Inconel 800 Plates is an iron-nickel-chromium alloy with moderate strength and good resistance to oxidation and carburization at elevated temperatures. It is particularly useful for high-temperature equipment in the petrochemical industry because the alloy doesn't form the embrittling sigma phase after long time exposure at 1200 Degrees F (649 Degrees C). Excellent resistance to chloride stress-corrosion cracking is another important feature of Inconel 800 Plates.

Typical applications for Inconel 800 Plates are - Heat exchangers and process piping; carburizing fixtures and retorts; furnace components; electric range heating-element sheathing; extruded tubing for ethylene and steam methane reforming furnaces; ammonia effluent coolers.

Specification :

UNS:

N08800

Specifications:

ASTM B409, AMS 5877

International Specifications:

BS 3072NA15, BS 3073NA15, VdTüV 412 & 434, DIN 17460, EN 10028-7, EN 10095

Typical Mechanical Properties of Inconel 800 Plates at High Temperatures :

Temp Hardness BHN Tensile Strength Yield Strength (0.2% Offset)
Degrees F Degrees C    ksi MPa ksi Mpa
80 27 126 77.8 536 21.7 150
800 425    67.5 465 18.8 130
1000 540 90 62.7 432 13.0 90
1200 650 84 54.8 378 13.5 93
1300 705 82 47.7 329 15.8 109
1400 760 74 34.2 236 13.1 90
