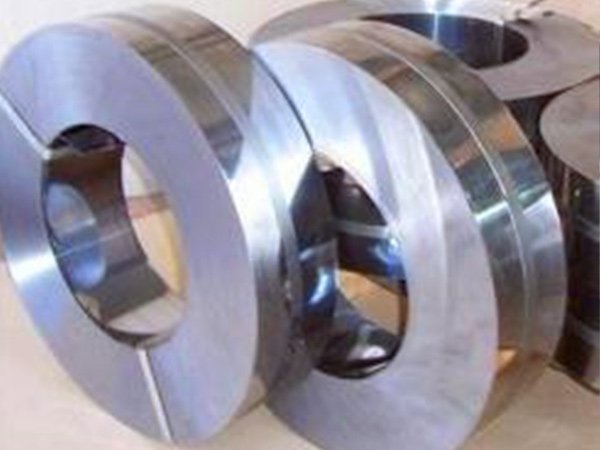

Monel 500 Coils

Monel K500 is a precipitation-hardenable nickel-copper alloy that combines the excellent corrosion resistance characteristic of Monel 400 with the added advantage of greater strength and hardness. These amplified properties, strength and hardness, are obtained by adding aluminum and titanium to the nickel-copper base and by a thermal processing used to effect precipitation, typically called age hardening or aging. When in the age-hardened condition, Monel K-500 has a greater tendency toward stress-corrosion cracking in some environments than Monel 400. Alloy K-500 has approximately three times the yield strength and double the tensile strength when compared with alloy 400. Plus, it can be further strengthened by cold working prior to precipitation hardening. The strength of this nickel steel alloy is maintained to 1200° F but stays ductile and tough down to temperatures of 400° F. Its melting range is 2400-2460° F.

This nickel alloy is spark resistant and non-magnetic to -200° F. However, it is possible to develop a magnetic layer on the surface of the material during processing. Aluminum and copper may be selectively oxidized during heating, leaving a magnetic nickel rich film on the outside. Pickling or Monel K-500 Barsbright dipping in acid can remove this magnetic film and restore the non-magnetic properties.

Corrosion Resistant Monel K-500 :

The corrosion resistance of alloy K-500 is substantially equivalent to that of alloy 400 except that when in the age-hardened condition, nickel alloy K-500 has a greater tendency toward stress-corrosion cracking in some environments. Monel K-500 has been found to be resistant to a sour-gas environment. The combination of very low corrosion rates in high-velocity sear water and high strength make alloy K-500 particularly suitable for shafts of centrifugal pumps in marine service. In stagnant or slow-moving sea water, fouling may occur followed by pitting but this pitting slows down after a fairly rapid initial attack.

What are the characteristics of Monel K500 :

  • Corrosion resistance in an extensive range of marine and chemical environments. From pure water to nonoxidizing mineral acids, salts and alkalis.
  • Excellent resistance to high velocity sea water
  • Resistant to a sour-gas environment
  • Excellent mechanical properties from sub-zero temperatures up to about 480C
  • Non-magnetic alloy

Equivalent Grades:

STANDARD UNS WERKSTOFF NR. EN BS GOST JIS AFNOR
Monel 400 N04400 2.4360 NiCu30Fe NA 13 МНЖМц 28-2,5-1,5 NW 4400 NU-30M
Monel K500 N05500 2.4375 - - - - -

Metal Properties :

Property Value
.2% Yield Strength 100 ksi
Charpy Impact V-notch 17 ft/lbs
Ultimate Tensile Strength 140 ksi
