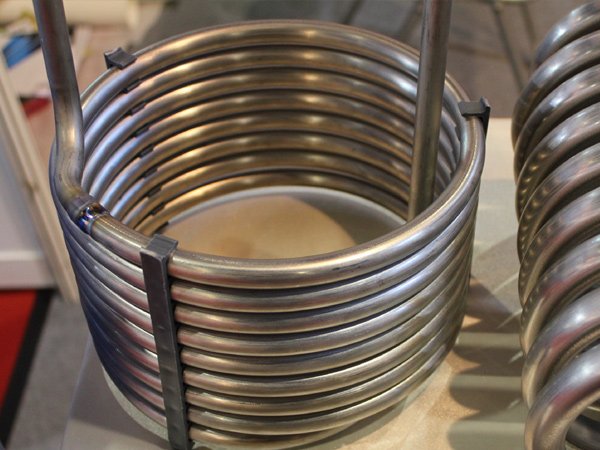

Pure Titanium Grade: GR1 Coils

Titanium Alloys ASTM B265 Gr 1 Coils | Titanium Alloys Gr 1 UNS R50250 Coils Exporter |Titanium Alloys DIN 3.7025 Coils

NG Industries is one of the main Manufacturers, Suppliers and Exporters of top notch Titanium Grade 1 Coils. Our Titanium Grade 1 Coils are testimonials of our quality principles. Commercially Pure Titanium Grade 1 Coils is one of the mildest and most pliable evaluations displaying the best formability. It has astounding corrosion resistance property, great weldability and is utilized as a part of a wide assortment of utilizations. This evaluation material is basically utilized as a part of marine and compound commercial enterprises where the parts are subjected to exceptionally harsh environments. This material is likewise utilized for creating anodes for cathodic protection applications.

These Titanium Grade 1 Coils are utilized as a part of different application industry. Working towards the point of customer fulfillment, we offer these items at the most reasonable industry costs.

Specifications :

Grades Titanium GR-1 (UNS R50250)
Standard GB / T 3621 -44 , ASTM B 265, ASME SB 265
Werkstoff Nr 3.7025
Thickness 1mm – 100mm
Width 1000mm – 3000mm
Production Hot-Rolled (HR) / Cold-Rolled (CR)

Application Chemicals & Fertilizers Industries , Sugar Mills , Cement Industries , Ship Building , Paper Industries , Oil & Gas , Petrochemicals , etc

Chemical Composition :

C Fe H N O Ti
max max max max max max
0.1 0.2 0.015 0.03 0.18 99.5

Mechnical Properties :

Hardness, Brinell 120120 annealed
Hardness, Knoop132132 Estimated from Brinell.
Hardness, Rockwell B7070 annealed
Hardness, Vickers122122 Estimated from Brinell.
Tensile Strength, Ultimate240 MPa34800 psi
Tensile Strength, Yield170 - 310 MPa24700 - 45000 psi
Elongation at Break24 %24 %
Reduction of Area35 %35 %
Modulus of Elasticity105 GPa15200 ksi In Tension
Compressive Modulus110 GPa16000 ksi
Poisson's Ratio0.370.37
Charpy Impact310 J229 ft-lb V-notch
Shear Modulus45 GPa6530 ksi
