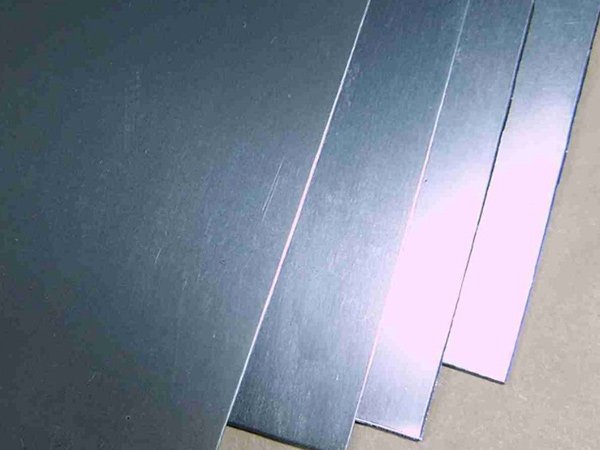

Titanium Alloy Grade: GR11 Sheets

Titanium Alloys ASTM B265 Gr 11 Coils | Titanium Alloys Gr 11 UNS R56320 Plates, Sheets & Coils Exporter |Titanium Alloys DIN 3.7195 Plates, Sheets & Coils

NG Industries is a pioneer in the Titanium Gr 11 Sheets Supplier and Titanium Gr 11 Plates Supplier. They are fundamentally utilized as a part of turbine motor and airframe parts; furthermore for use in surgical inserts. They have a high temperature treatable and have high quality and flexibility together with incredible weldability and fabricability. It's a collusion of unique great corrosion and quality resistance, demonstrating the most extreme intensity of the greater part of the unalloyed evaluations.

These Titanium Alloy Gr 11 are utilized as a part of different application industry. Working towards the point of customer fulfillment, we offer these Titanium Alloy Gr 11 Plates & Sheets at the most reasonable industry costs.

Specifications :

Standard GB / T 3621 -44 , ASTM B 265, ASME SB 265
Werkstoff Nr 3.7195
Grades Titanium GR-11 (UNS R56320)
Thickness 1mm – 100mm
Width 1000mm – 3000mm
Production Hot-Rolled (HR) / Cold-Rolled (CR)
Application Chemicals & Fertilizers Industries , Sugar Mills , Cement Industries , Ship Building , Paper Industries , Oil & Gas , Petrochemicals , etc

Chemical Composition :

Al Ti V
max max max
3 95 2.5

Mechnical Properties :

Hardness, Brinell 256 256Estimated from Rockwell C
Hardness, Knoop278278 Estimated from Rockwell C.
Hardness, Rockwell C2424 annealed
Hardness, Vickers280280 Estimated from Brinell.
Tensile Strength, Ultimate89900 MPa620 psi
Tensile Strength, Yield500 MPa72500 psi
Elongation at Break15 %15 %
Modulus of Elasticity100 Gpa14500 ksi
Compressive Yield Strength105 GPa100000 ksi In Tension
Notched Tensile Strength790 MPa115000 psi  ksi
Poisson's Ratio0.30.3
Charpy Impact86 J63.4 ft-lb V-notch
Shear Modulus44 GPa6380 ksi
Fatigue Strength280 MPa40600  psi50,000 cycles. Kt (stress concentration factor) = 1.8
