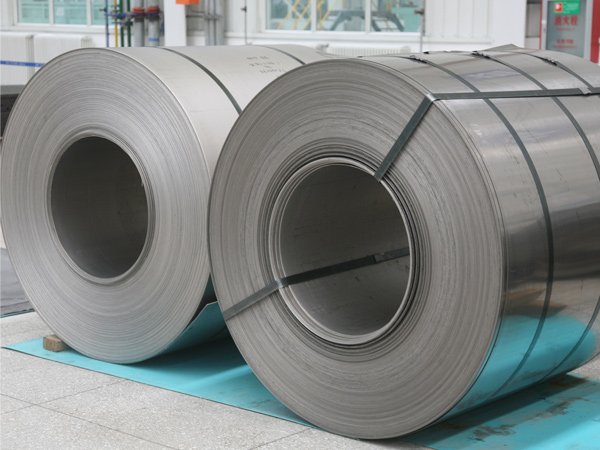

Titanium Alloy Grade: GR5 Coils

Titanium UNS N56400 Shim Sheet, DIN 3.7165 Chequered Plates Distributor , Titanium Alloy Grade 5 Coils Manufacturer in India.

NG Industries is one of the leading Manufacturer, Supplier and Exporter of Titanium Grade 5 Coils that are actually manufactured from High Quality of Standard Raw Materials and are designed as perwith national and international standards. Grade 5 Titanium Coils (also referred as Din 3.7164 Sheets and Din 3.7165 Plates) are established primarily in response to the emerging aerospace industry, which used it in the manufacture of airframe structural components and skin, aircraft hydraulic systems, air engine components, rockets, missiles, and spacecraft, where these properties are invaluable. The military also uses these UNS R56400 Coils in its guided missiles and in artillery.We offer these Titanium Grade 5 products in custom-made shapes and sizes as per the requirements given by our clients, and that too at an affordable and market leading prices.

Specifications :

Grades Titanium Gr 5 – UNS N56400
Standards : GB / T 3621 -44 ASTM, ASME, AMS
Specifications : ASTM B 265 / ASME SB 265, AMS 4902
Range : 5 mm To 50 mm thick in 1000 mm TO 1250 mm width & 2500 mm Length.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

Chemical Composition :

Ti Al Fe O V
90 min 6 min 0.25 max 0.2 max 4 min

Mechnical Properties :

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %
